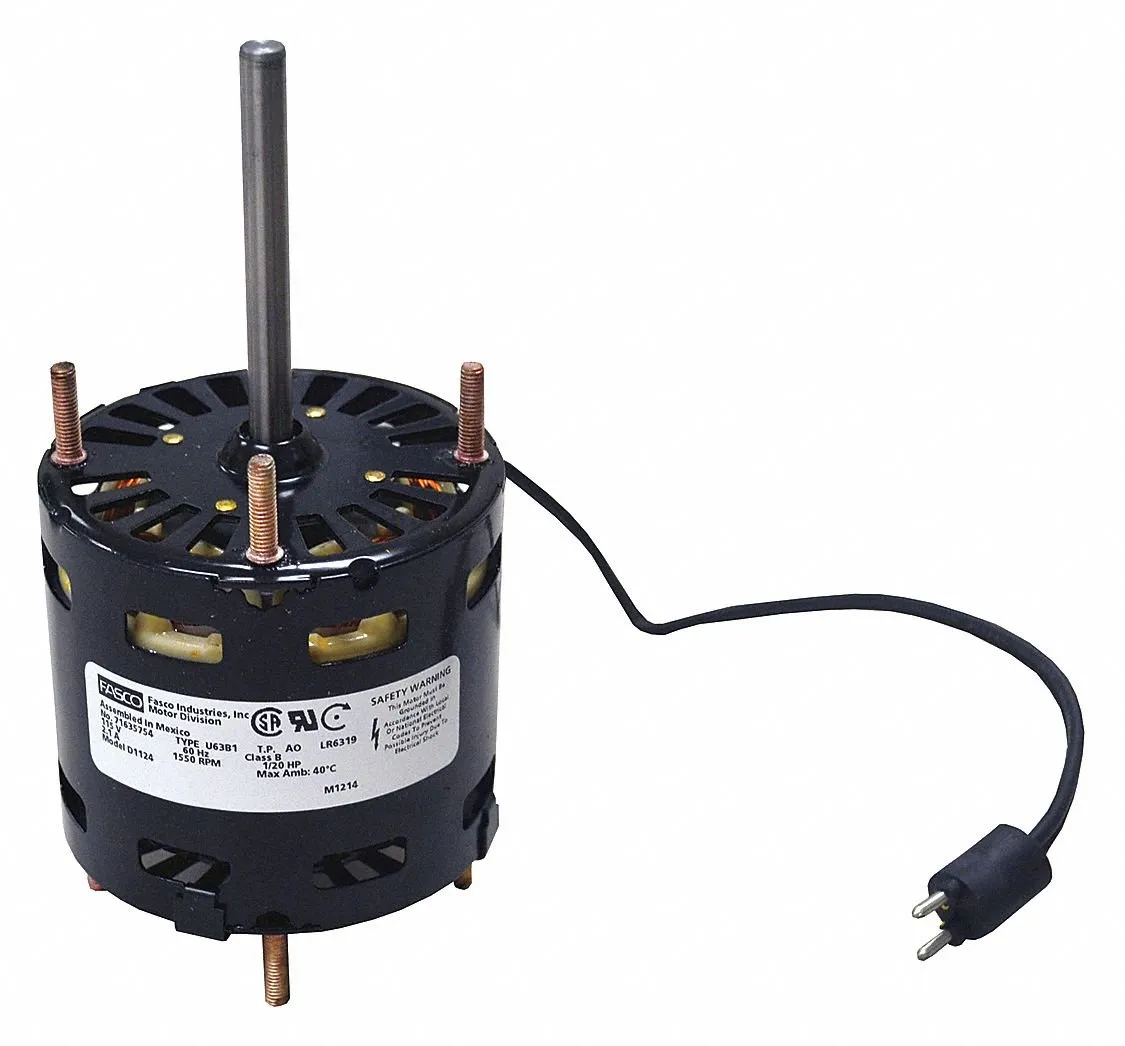

The FASCO 3.3”-dia. HVAC motor is 1-phase, suitable for air-moving or mechanical applications, including fans, air conditioners, heaters, pumps, and compressors. Shaded pole Open air-over

Item: HVAC Motor
Motor Design: Shaded Pole
HP: 1/20
RPM Range: 1501-1600
No. of Speeds: 1
Voltage: 115
Motor Shaft Rotation: CWSE
Motor Enclosure Design: Open Air-Over
Motor Mounting Type: Stud
Shaft Dia.: 5/16"
Shaft Length: 3"
Number of Shafts: 1
Motor Thermal Protection: Auto
Nameplate RPM: 1550
Phase: 1
Motor Application: HVAC/R
Motor Sub Application: Direct Drive Fan/Blower
Frame: 3.3
Motor Bearings: Sleeve
Full Load Amps: 2.1
Duty: Continuous
Motor Service Factor: 1.00
Hz: 60
Body Dia.: 3.3"
Ins. Class: B
Max. Ambient Temp.: 40 Degrees C
Length Less Shaft: 3"
Mounting Stud Location: 4/Both Ends
Stud/Base Mtg. Pattern: 2-27-32" x 90 Degrees
Motor Shaft Design: Flat
Application: General Application
Cord Length: 13"
Plug Type: Round 2 Pin

• Package Dimensions ‏ : ‎ 2 x 2 x 2 inches
• Date First Available ‏ : ‎ September 24, 2018
• Manufacturer ‏ : ‎ CAI - FASCO
